Red Win Cherno RWD52 Mini Solar Red Dot Sight – Multi Reticle & Motion Sensor

Alright, let's talk about the Red Win Cherno RWD52.

This thing is small.

And that's kind of the point.

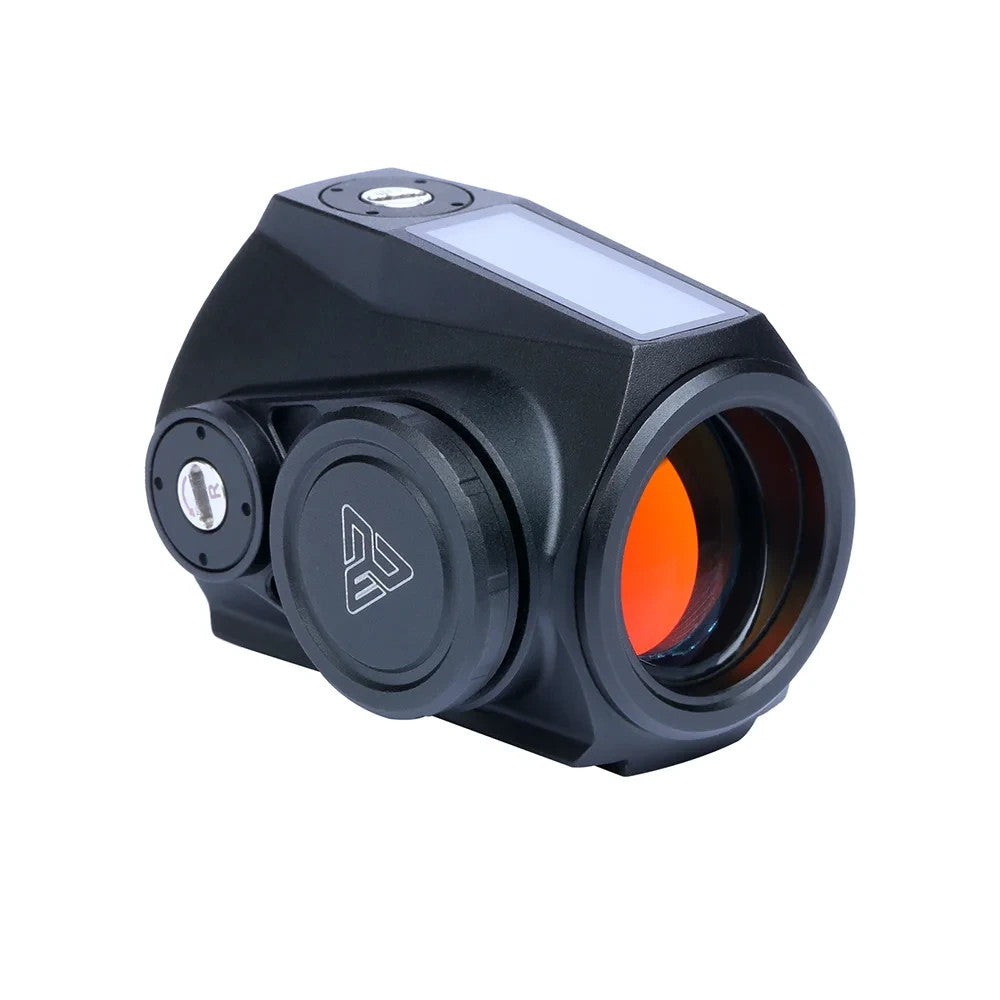

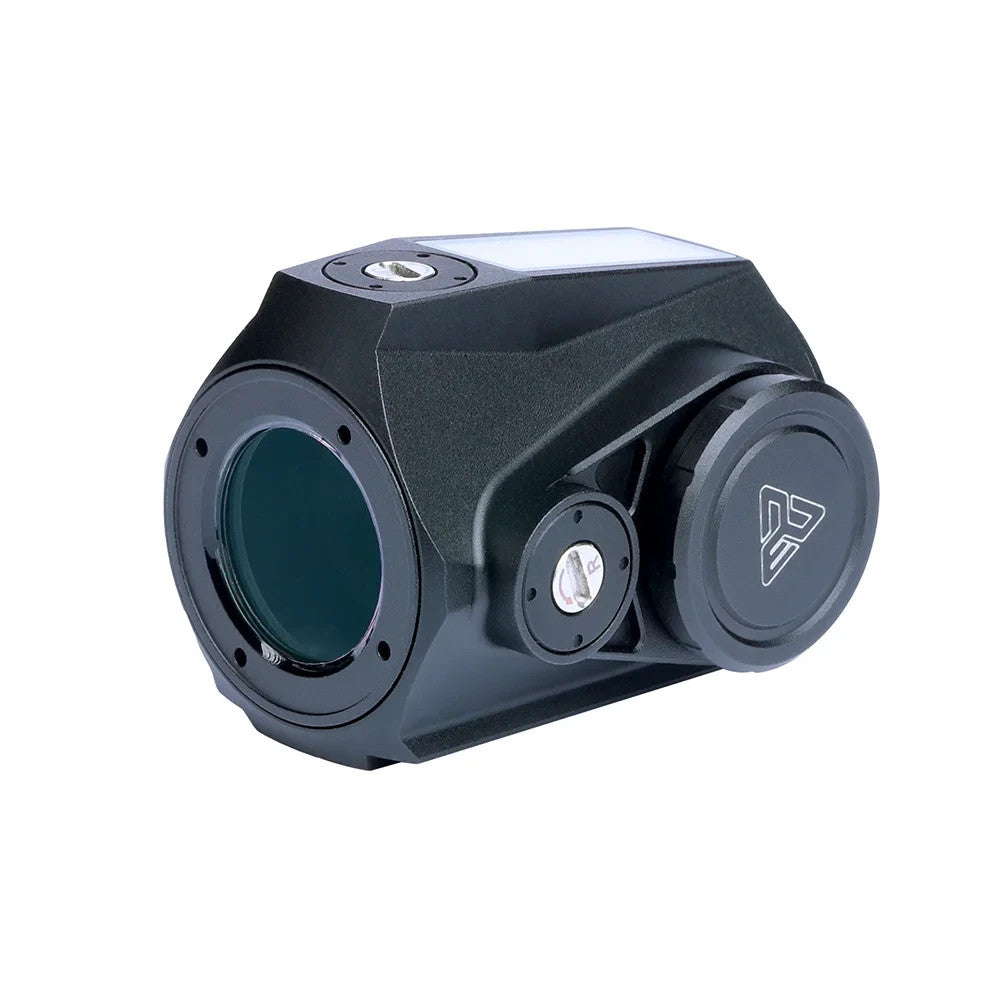

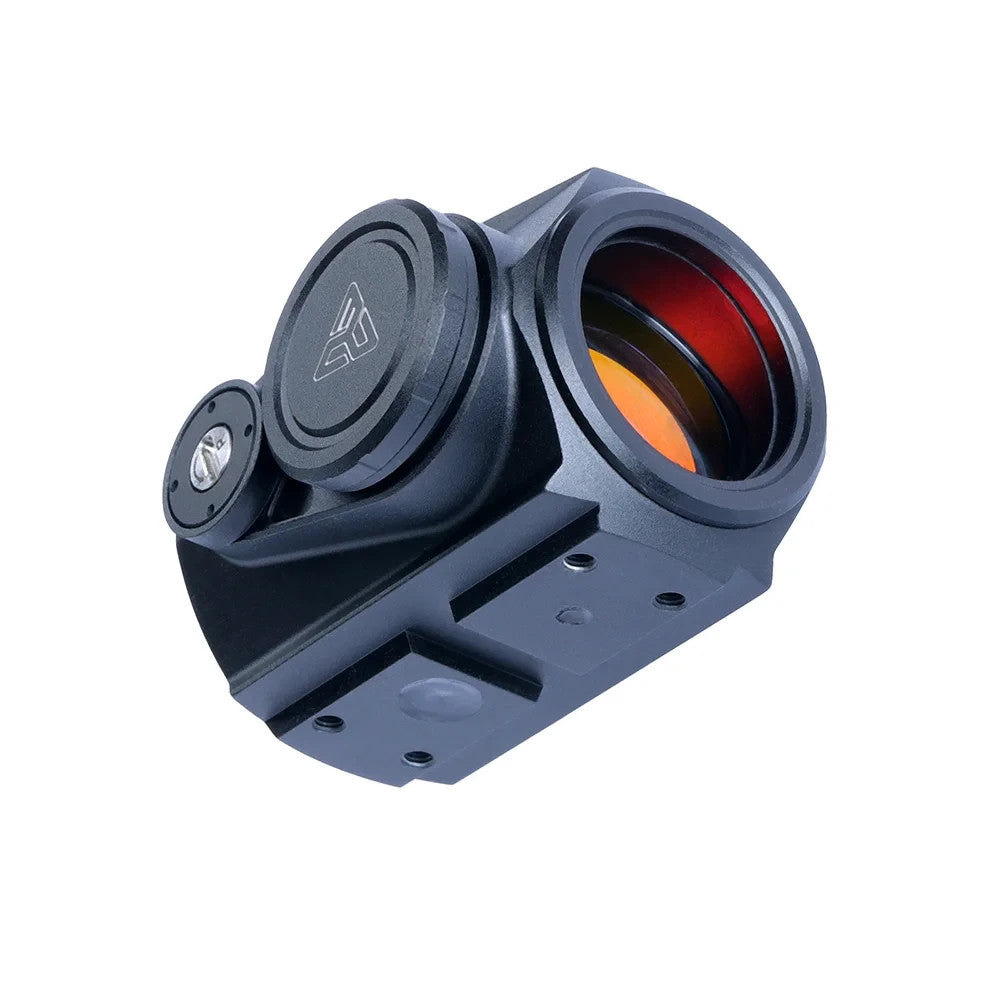

The Cherno RWD52 Mini Red Dot Sight packs a 23mm objective lens, solar power, multi-reticle system, motion sensor, night-vision settings, and up to 50,000 hours of battery life into a compact optic that's only 2 inches long and weighs just 4.76 ounces.

Red Win shaved roughly 12mm off the length of a traditional red dot design without shaving off the features that actually matter.

Less optic taking up space.

More room for everything else.

SOLAR POWER + 50,000-HOUR BATTERY LIFE

The Red Win RWD52 solar red dot sight combines a solar power supply system with a standard CR2032 battery.

Red Win rates battery life at up to an impressive 50,000 hours on the low setting.

That's about 5.7 years if you somehow managed to leave the thing running continuously.

Don't do that.

But you could.

The solar system provides another power source when sufficient light is available, giving you a red dot designed around long-term power management instead of constantly wondering when you last changed the battery.

MOTION SENSOR + 2-MINUTE AUTO SHUTOFF

Here's another feature we like.

The Cherno RWD52 incorporates a motion sensor and automatically shuts the illumination down after approximately 2 minutes without movement.

Move the optic again and the system is designed to bring it back into action.

That means you're not burning battery while your gear is sitting around doing absolutely nothing.

Apparently the optic is smart enough to know when it's time for a nap.

Some people we know could learn from it.

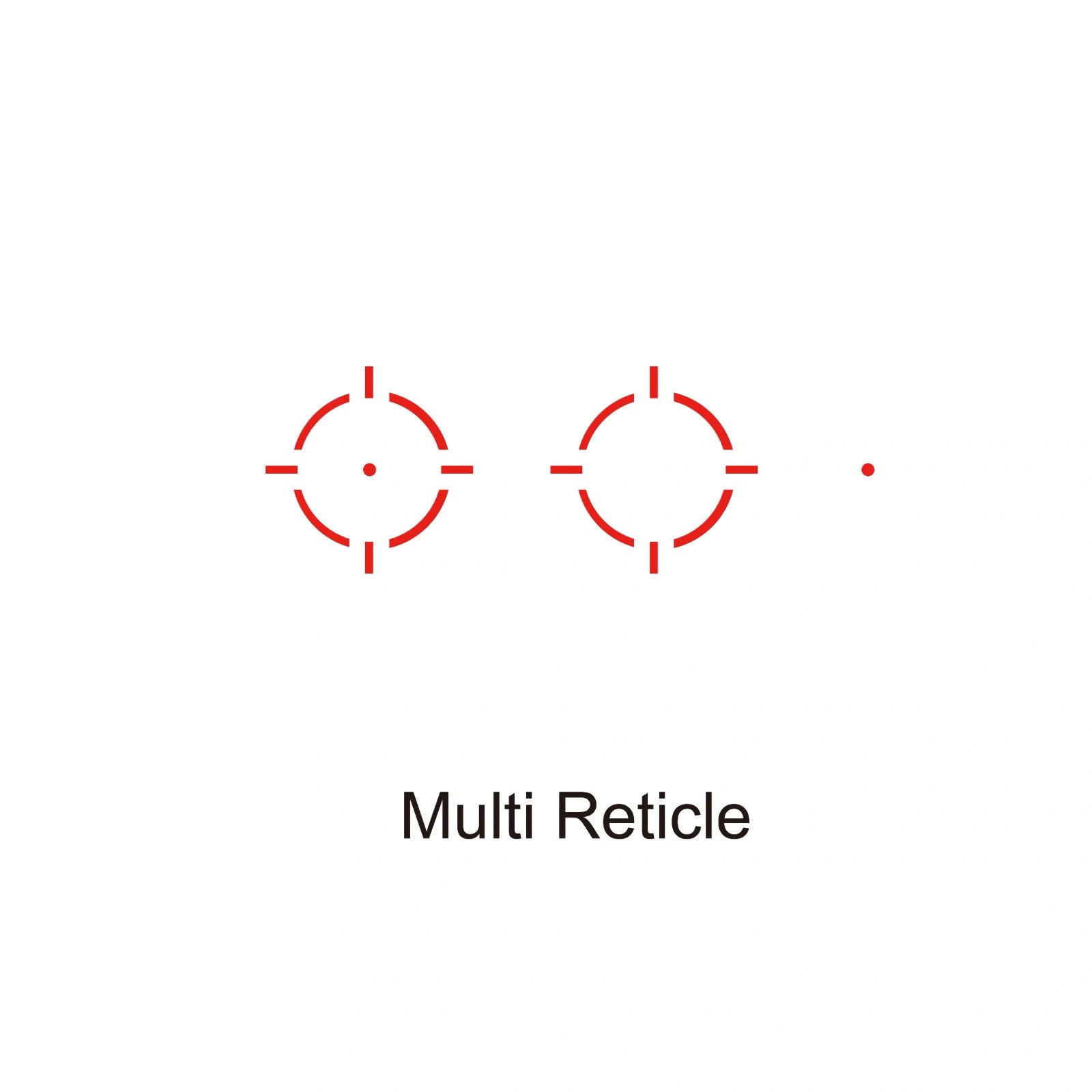

MULTI-RETICLE RED DOT SYSTEM

The RWD52 isn't limited to a single reticle configuration.

You get a multi-reticle system with red LED illumination and 10 brightness settings:

• 8 Daylight Brightness Levels

• 2 Night-Vision Brightness Levels

• Multi-Reticle System

• Red Illumination

Bright daylight? Crank it up.

Low light? Dial it back.

Night vision? You've got settings for that too.

Simple.

Like it ought to be.

23MM FULLY MULTI-COATED LENS

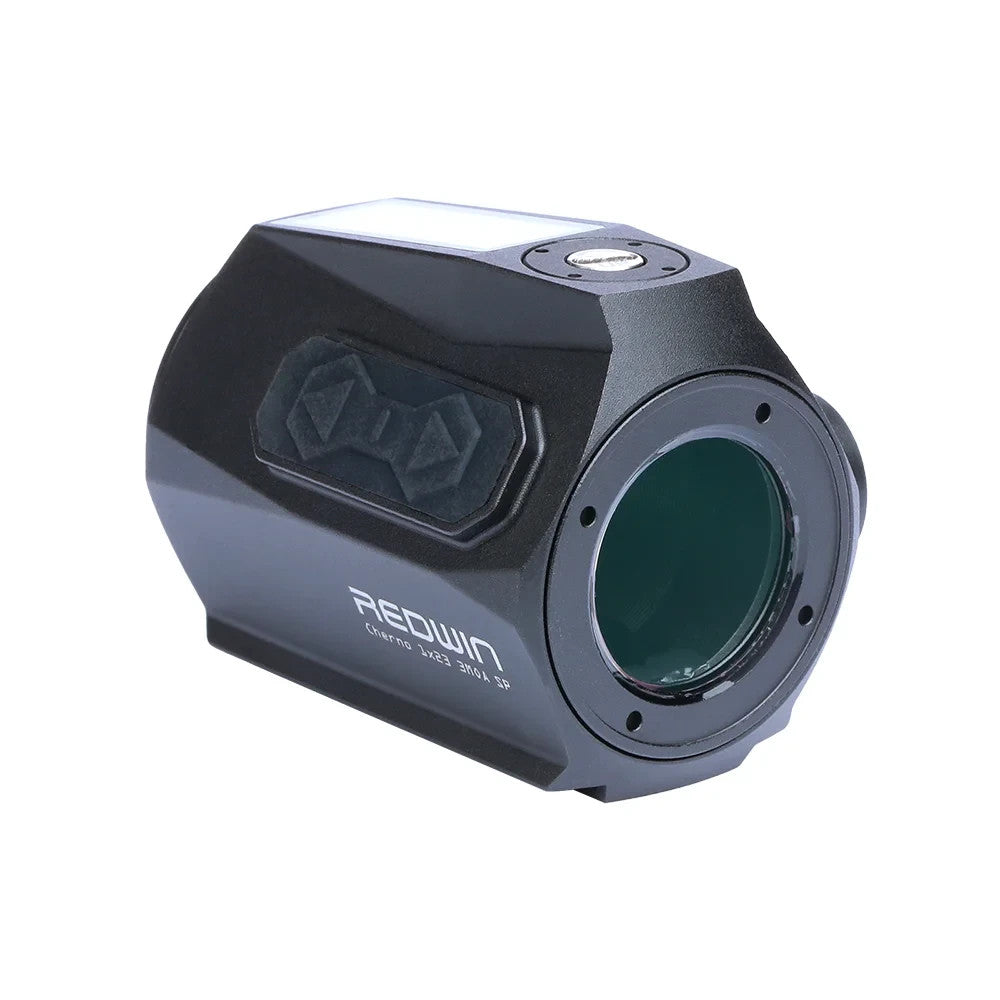

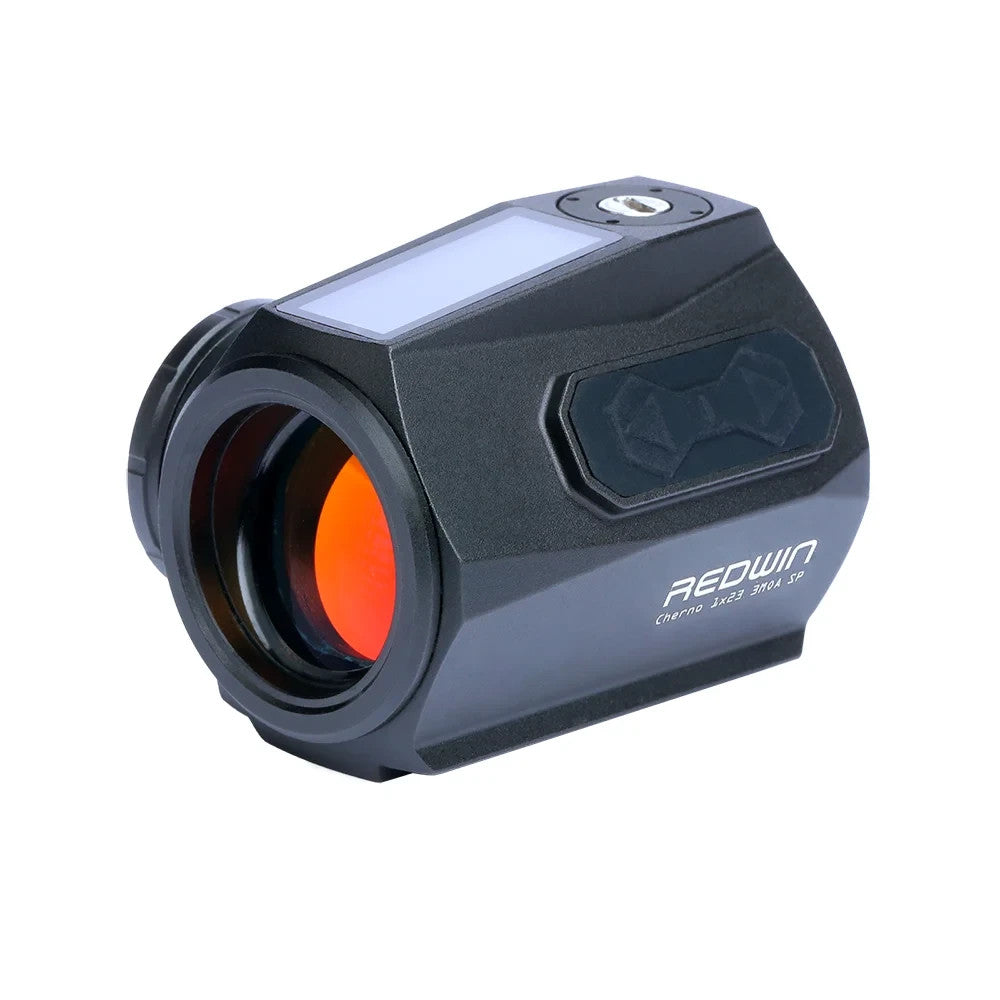

The Cherno features a 23mm objective lens with fully multi-coated glass designed to provide a clear sight picture while keeping the optic compact.

Magnification is 1x, and eye relief is unlimited, making this a true red dot-style optic built around fast target acquisition and shooting with both eyes open.

Because if you wanted to squint through a tiny tube all day, there are cheaper ways to irritate yourself.

ONLY 2 INCHES LONG

Here's where the Cherno Mini RWD52 earns the "Mini" in its name.

The entire optic measures approximately:

• Length: 2.0 in

• Width: 1.7 in

• Weight: 4.76 oz

That's approximately 12mm shorter than the regular version, giving you a compact footprint without giving up the solar system, motion sensing, multi-reticle capability, or mounting options.

Small optic.

Big feature list.

LOWER 1/3 CO-WITNESS + LOW MOUNT

The Red Win Cherno RWD52 includes mounting options for different setups.

The system supports:

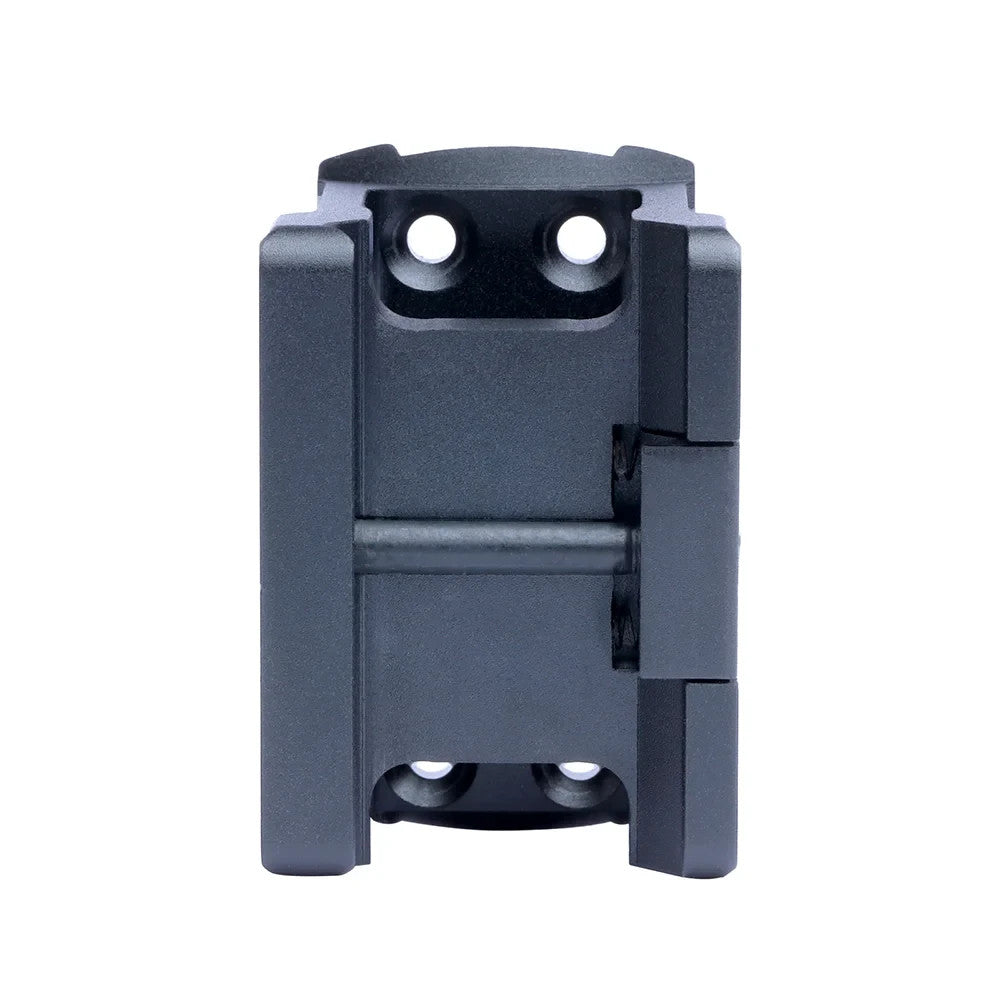

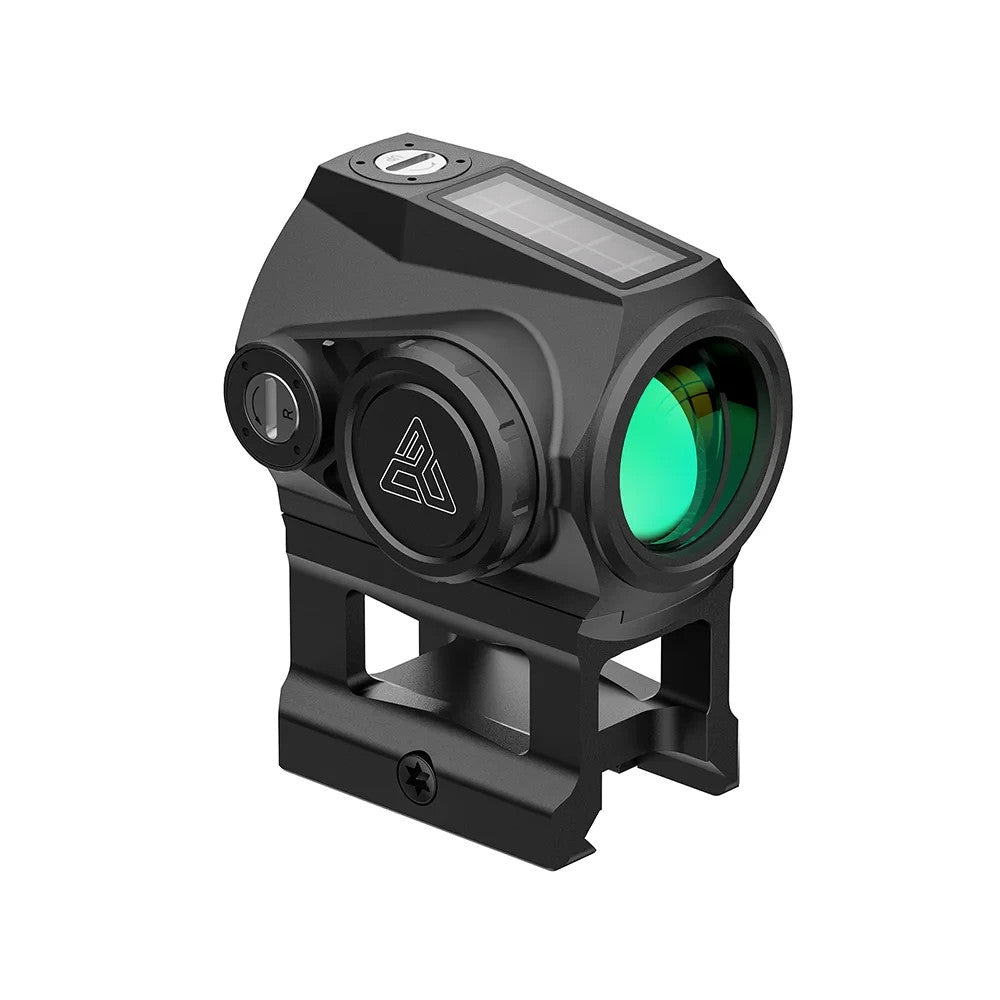

• Lower 1/3 Co-Witness Riser Mount

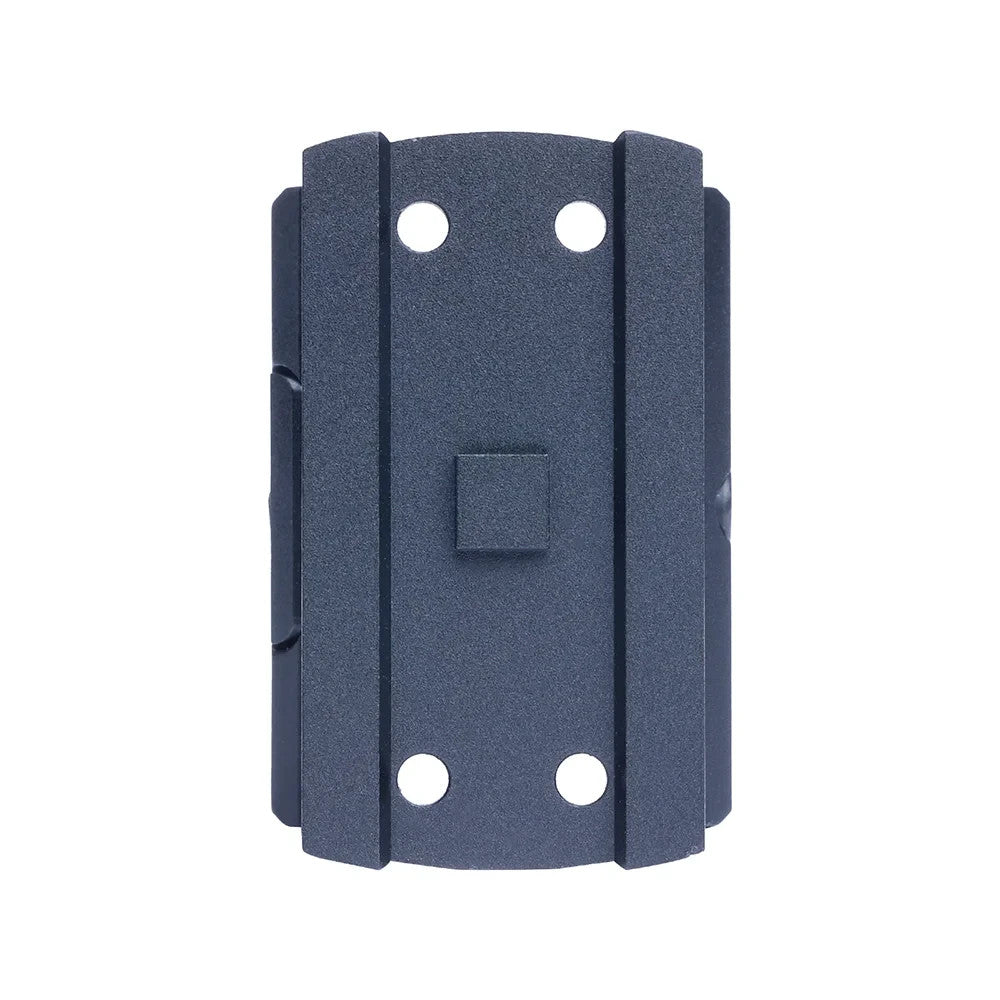

• Low Mount

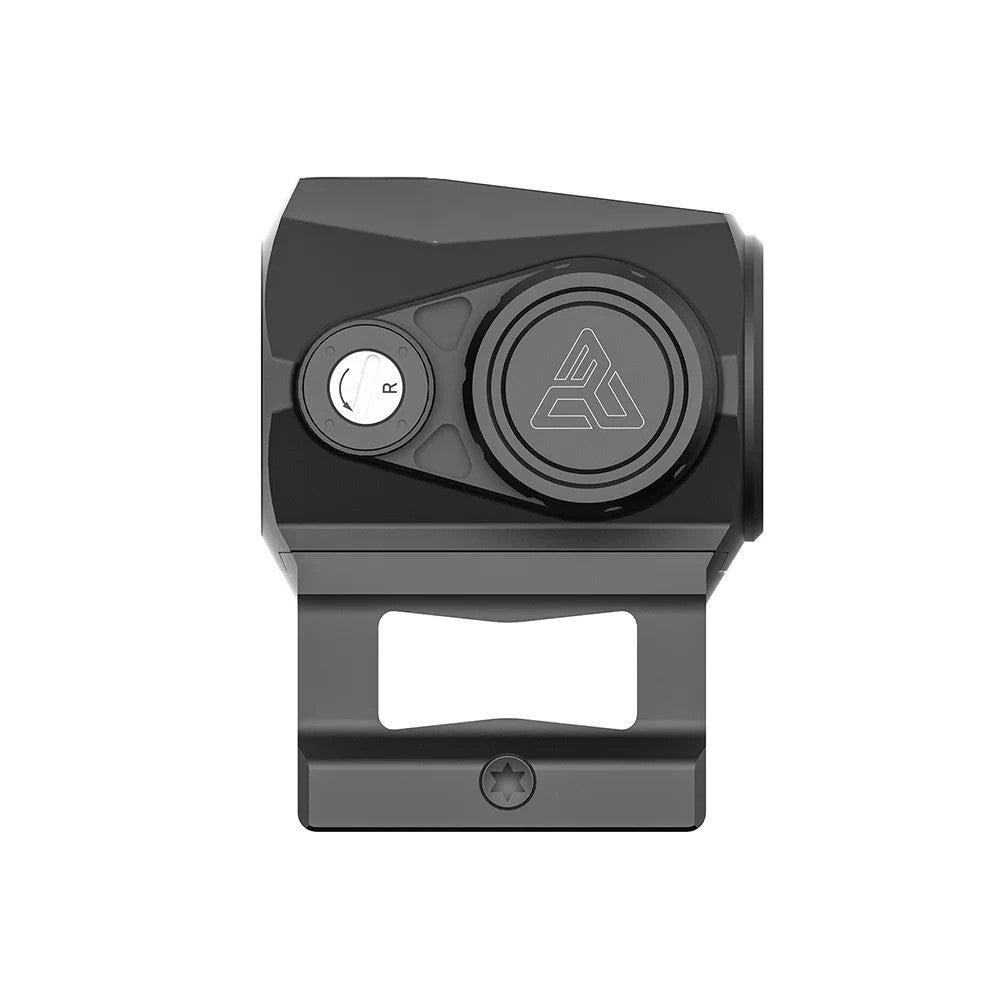

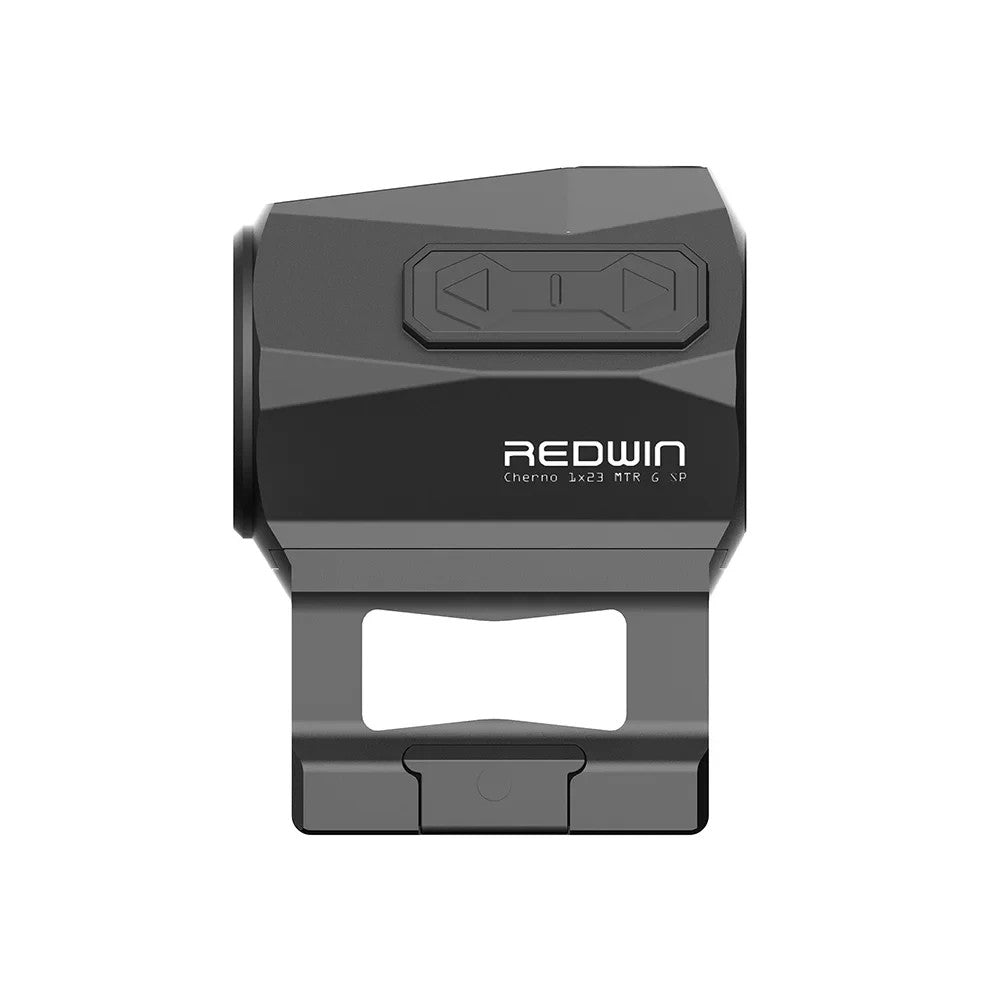

With the riser installed, the optical axis sits approximately 1.6 inches from the bottom to center.

Whether you want the optic sitting low or raised to a lower 1/3 co-witness height, you've got options.

Options are good.

Buying another mount five minutes after opening the box isn't.

IPX67 WATERPROOF + FOG PROOF

Eventually your gear is going to get wet.

Or dusty.

Or cold.

Or hot.

Or tossed into something harder than you intended.

That's called using it.

The Cherno RWD52 Mini Red Dot carries an IPX67 waterproof rating and is fog proof.

Its operating temperature range is approximately:

-40°F to 158°F

If you're voluntarily using it at either end of that range, Muc has some questions about your life choices.

But the optic is rated for it.

KEY FEATURES & SPECIFICATIONS

• Brand: Red Win

• Series: Cherno Mini

• Model: RWD52

• Optic Type: Red Dot Sight

• Magnification: 1x

• Objective Lens: 23mm

• Lens: Fully Multi-Coated

• Reticle: Multi-Reticle System

• Reticle Color: Red

• Brightness Settings: 10 Total

• Daylight Settings: 8

• Night-Vision Settings: 2

• Eye Relief: Unlimited

• Field of View: 36°

• Total Adjustment Range: 100

• Adjustment Value: 1

• Parallax: <2 Dot

• Parallax Setting: 100 yds

• Solar Power: Yes

• Motion Sensor: Yes

• Auto Shutoff: Approx. 2 Minutes Without Motion

• Battery: CR2032

• Battery Voltage: 3V

• Maximum Battery Life: Up to 50,000 Hours on Low Setting

• Waterproof Rating: IPX67

• Fog Proof: Yes

• Operating Temperature: -40°F to 158°F

• Overall Length: 2.0 in

• Width: 1.7 in

• Weight: 4.76 oz

• Riser Optical Axis Height: 1.6 in

• Mounting Options: Lower 1/3 Co-Witness & Low Mount

• Manufacturer Warranty: 5 Years

WHY A MINI RED DOT?

Because sometimes smaller really is better.

A compact 1x red dot sight keeps weight and bulk down while giving you unlimited eye relief and a wide field of view for fast target acquisition.

The RWD52 takes that basic idea and adds some genuinely useful technology:

Solar power.
Motion activation.
2-minute auto shutoff.
Multi-reticle system.
50,000-hour maximum battery life.
Night-vision settings.

All in a package that's just 2 inches long.

That's how you make something smaller without making it less useful.

THE MUC BOTTOM LINE

The Red Win Cherno RWD52 Mini Solar Red Dot Sight weighs less than 5 ounces but isn't exactly light on features.

You get:

1x magnification.
23mm fully multi-coated lens.
Multi-reticle system.
Red illumination.
8 daylight settings.
2 night-vision settings.
Solar power.
Motion sensor.
2-minute auto shutoff.
Up to 50,000-hour battery life.
Unlimited eye relief.
Lower 1/3 co-witness and low mounting options.
IPX67 waterproof protection.
Fog-proof construction.
5-year manufacturer's warranty.

That's a respectable résumé for something only 2 inches long.

If you're looking for a compact solar red dot sight with a multi-reticle system, motion activation, long battery life, and night-vision settings, the Cherno RWD52 checks a whole bunch of boxes.

Small doesn't have to mean stripped down.

Compact but not compromised.
